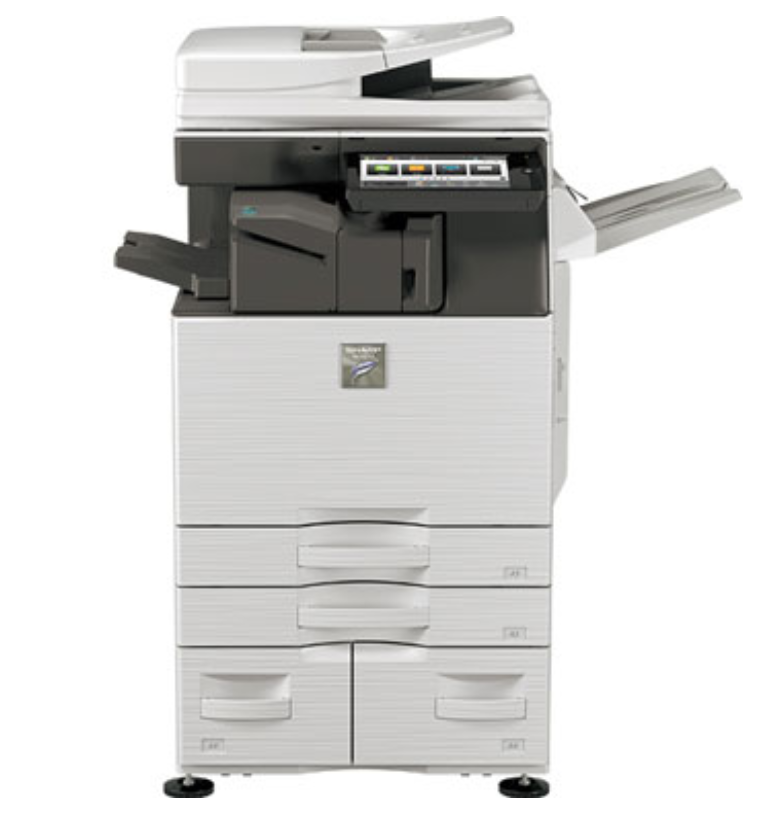

MX-M3550 / MX-M3050
Intelligent Solutions Tailored
to Your Workplace
Sharp Bring new business opportunities into focus with the swift and versatile MX-M3550 / MX-M3050. This high-performing black-and-white MFP comes with a generous array of options, so you can customise it with the advanced functions your office needs. Sharing the same design concept and user-friendly UI of Sharp’s latest colour MFPs, the MX-M3550 / MX-M3050 lets you produce, manage, and share high-quality documents with ease. Use it as an all-in-one solution or connect it to an MFP network. Either way, it works as a rock-solid everyday document solution.
|
 |
| General |
| Model |
|
MX-M3550 |
MX-M3050 |
| Type |
|
Desktop |
| Engine Speed |
A4 Size - |
Max. 35 PPM |
Max. 30 PPM |
| A3 Size - |
Max. 17 PPM |
Max. 15 PPM |
| A3 Wide - |
Max. 16 PPM |
MAX. 14 PPM |
| Control Panel Display |
|
10.1-inch colour LCD touchscreen |
| Paper Size |
|
Max. A3W (12" x 18"), min. A5 (5 1/2" x 8 1/2") |
| Paper Capacity |
Standard - |
650 sheets
(550-sheet tray and 100-sheet multi-bypass tray) |
| Maximum - |
6,300 sheets
(650 sheets & optional 550 + 2,100-sheet tray and 3,000-sheet tray) |
| Paper Weight |
Tray - |
60 g/m2 to 300 g/m2 |
| Multi Bypass Tray - |
55 g/m2 to 300 g/m2 |
| Warm-up time |
|
15 sec. |
| Memory |
Standard - |
5 GB (copy/print shared) |
| Option - |
500 GB HDD |
| Dimensions (WxDxH) |
|
608 x 650 x 834 mm |
| Weight (approx.) |
|
64 kg |
| Copier |
| Original Paper Size |
|
Max. A3 |
| First Copy Time |
|
4.5 sec. |
| Continuous Copy |
|
Max. 999 copies |
| Resolution |
Scan - |
600 x 600 dpi, 600 x 400 dpi |
| Print - |
600 x 600 dpi, 9,600 (equivalent) x 600 dpi |
| Gradation |
|
256 levels (equivalent) |
| Zoom Range |
|
25% to 400% (25% to 200% using RSPF) in 1% increments |
| Preset Copy Ratios |
Metric - |
10 ratios (5R/5E) |
| Inch - |
8 ratios (4R/4E) |
| Network Colour Scanner |
| Scan Method |
Push Scan - |
via control panel |
| Pull Scan - |
TWAIN-compliant application |
| Scan Speed |
|
Max. 80 originals/min. |
| Resolution |
Push Scan - |
100, 150, 200, 300, 400, 600 dpi |
| Pull Scan - |
75, 100, 150, 200, 300, 400, 600 dpi
50 dpi to 9,600 dpi via user setting |
| File Formats |
|
TIFF, PDF, PDF/A, encrypted PDF, compact PDF, JPEG, XPS, searchable PDF, OOXML (docx, xlsx, pptx), text (TXT [UTF-8]), rich text (RTF) |
| Scanner Utility |
|
Sharpdesk |
| Scan Destinations |
|
Scan to e-mail/desktop/FTP server/network folder (SMB)/USB drive/HDD |
| Network Printer |
| Resolution |
|
1,200 x 600 dpi, 600 x 600 dpi |
| Interface |
|
USB 2.0, 10Base-T/100Base-TX/1000Base-T |
| Supported OS |
|
Windows Server® 2008, Windows Server® 2008 R2, Windows Server® 2012,
Windows Server® 2012 R2, Windows Server® 2016, Windows Vista®,
Windows® 7, Windows® 8.1, Windows® 10,
Mac OS 10.6. 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 |
| Network protocols |
|
TCP/IP (IPv4, IPv6) |
| Printing protocols |
|
LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD |
| PDL |
Standard - |
PCL 6 emulation |
| Option - |
PostScript® 3™ |
| Available fonts |
|
80 fonts for PCL, 139 fonts for PostScript 3 |
|
|
|
|
- MX-M3550 / MX-3050
Digital Multifunctional System
 PDF : 5.26MB
|
|
|
|
|
|
|
|
|
|
|
|
